Fuel Level Sensor
Leading Wholesaler, Trader of LLS-Ex 5 Explosion-Proof Fuel Level Sensor, Omnicomm LLS 4 Fuel Level Sensor and Omnicomm LLS 6 AI Fuel Level Sensor from Ahmedabad.
| Business Type | Supplier, Trader |
| Material | Stainless Steel |
| Protection Level | IP69K-rated |
| Body | Shock-resistant Monolithic |
| Connector | Sealed |
| Isolation | 2500V Galvanic |
| Operating Temperature | -40°C To +80°C |
| Special Feature | Fuelscan Technology |

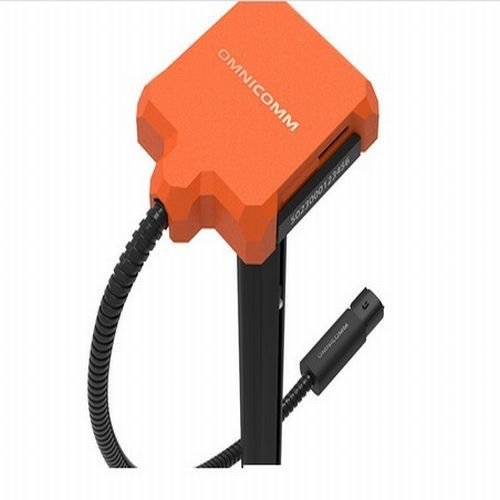

The Omnicomm LLS-Ex 5 digital fuel level sensor is designed for use in potentially hazardous zones requiring explosion-proof equipment. This sensor is perfect for measuring fuel levels in fuel tankers and stationary fuel storage facilities operating in compliance with international safety standards. LLS-Ex 5 is ATEX-certified, confirming its suitability for explosion-hazardous environments.
Important: The LLS-Ex 5 sensor must be installed and connected to GPS-trackers exclusively via the Spark protection unit Omnicomm BIS-MX. This ensures compliance with explosion protection requirements and guarantees the safe and reliable operation of the system.
- Analyzes the characteristics of refueled fuel
- Compares the fuel with the one used for calibration
- Adjusts readings based on detected differences, ensuring benchmark accuracy
LLS-Ex 5 offers the highest level of environmental protection, making it ideal for the most challenging environments:
- IP69K-rated protection against dust and moisture
- Explosion-proof certification for hazardous zones
- Shock-resistant monolithic body
- Sealed connector
- Stainless steel armored cable
- 2500V galvanic isolation power module
- Operating temperature range: -40 °C to +80 °
- Works seamlessly across different fuel stations
- Handles seasonal fuel changes effortlessly
- Requires no reconfiguration, recalibration, or reprogramming
| Business Type | Supplier, Trader |
| Application | Fuel Monitoring For Various Vehicle Types |
| Type | Digital Fuel Level Sensor |
| Design Features | Impact-Resistant Casing, Armored Cable, Compact Design |
| Special Features | High Measurement Accuracy, Fully Prepared For Harsh Environments |
| Key Advantages | Precise Fuel Level Tracking, Robust Protection |
| Power Module | Built-in 2500V Galvanic Isolation |
| Compatibility | Heavy Machinery, Railway Transport, Construction, Agricultural |

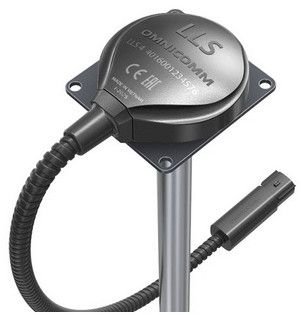

The Omnicomm LLS 4 digital fuel level sensor is designed for fuel monitoring across various vehicle types, including heavy machinery, railway transport, construction, agricultural, and mining equipment. This sensor is ideal for high-load and harsh environments, providing exceptional measurement accuracy and durability.
The sensor’s firmware, combined with enhanced vandal resistance and fully sealed components, guarantees uninterrupted operation even in the toughest conditions. The power module with built-in 2500V galvanic isolation enhances reliability and safety.
- High measurement accuracy – Ensures precise fuel level tracking with minimal errors.
- Impact-resistant casing and armored cable – Provides robust protection against external factors.
- Fully prepared for harsh environments – Withstands high-pressure washing, making it suitable for all weather conditions.
- Compact design – Small sensor head size allows installation in tightly packed machinery components, saving space.
- Sealed connections – Protects against tampering, ensuring data accuracy and safe operation.
| Business Type | Supplier, Trader |
| Feature | Built-in Artificial Intelligence For Real-time Data Analysis |
| Application | Fuel Level Monitoring |
| Type | Fuel Level Sensor |
| Power supply voltage | 7…75 V |
| Current consumption | max 40 mA |
| Dielectric strength of galvanic isolation | min 2500 V |

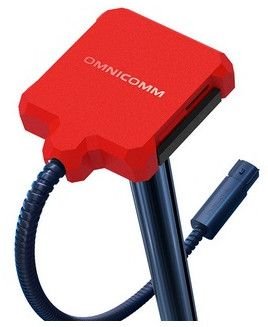

Omnicomm LLS 6 AI is a revolutionary fuel level sensor with built-in artificial intelligence, providing unparalleled accuracy and stability in fuel level readings under the most challenging operating conditions. This sensor builds on the success of the LLS 5 generation, featuring enhancements such as adaptation to changing operating conditions and smoother readings. By utilizing advanced technology, LLS 6 AI significantly improves fuel analytics, offering unique advantages to users.
- Built-in Artificial Intelligence (AI): Analyzes and refines fuel level data in real time, minimizing errors and ensuring output data matches what would be generated in Omnicomm Online.
- Fuelscan® Technology: Automatically adjusts to changes in fuel properties, ensuring stable and accurate measurements.
- Precise Detection of Refueling and Draining: Capable of setting minimal thresholds and accurately identifying refueling and draining events with minimal deviations. Prevents false alerts caused by fuel fluctuations.
- Compatibility with Any Monitoring System: LLS 6 AI integrates with any fuel monitoring solution, regardless of software or hardware. The Omnicomm LLS protocol is the industry standard and is supported by most manufacturers.
LLS 6 AI is equipped with dual measurement elements in a single sensor and features a patented design with increased spacing between the probe and the tube. This ensures self-cleaning, preventing the need for frequent maintenance.
- Self-Cleaning: The sensor cleans itself during operation, eliminating the need for manual washing.
- Enhanced Vandal Resistance: A unique monolithic body protects against external damage.
- IP69K Protection: Maximum resistance to dust and moisture, making it suitable for the harshest conditions.
- Interface Protection: Shields against electrical interference, preventing malfunctions due to incorrect connections.
These features make Omnicomm LLS 6 AI the lowest-cost fuel level sensor to own, complemented by a lifetime warranty, making it the most valuable investment on the market.
